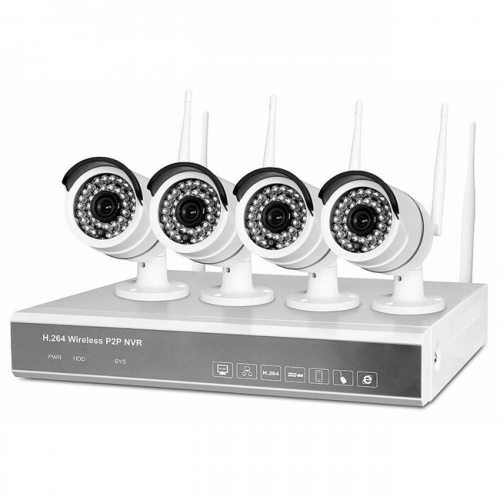

1080P Wireless Security NVR Kit

Model:ES-WK9304HF
* 2.4GHz 4CH 1080P/ 2.0MP wireless CCTV security kit
* Standard H.264 video compression
* 4*HD 2MP waterproof IP cameras with 20M night vision
* 4CH realtime recording & synchro playback
* Built-in wireless module, stable signal transmission
* Auto code matching from NVR to camera
* Real plug and play without any network setting
* Support CMS, APP, broswer live viewing
* 30M signal transmission& reception distance
* All in one kit, easy to install, simple to use
  • 1. 2.4GHz 4CH 1080P wireless CCTV security NVR kit
    2. Embedded linux operation system
    3. Standard H.264 video compression
    4. Professional industrial processor
    5. 4CH realtime recording & synchro playback
    6. 4*HD 2MP wirless IP cameras, IP66 waterproof
    7. With 36 IR LEDs for night vision 20 meters
    8. Built-in wireless module, stable signal transmission

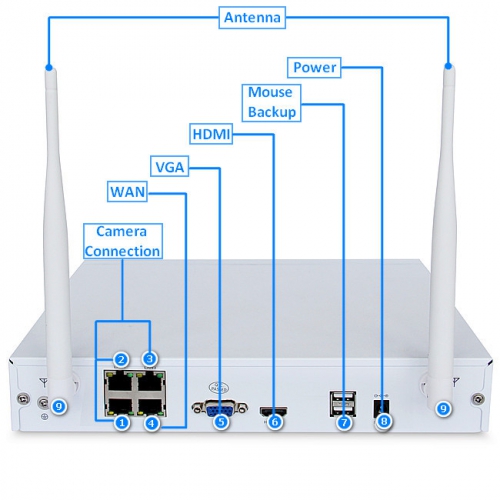

    9. Reserved 4 RJ45 port, 1 for WAN, 3 for camera wiring connection
    10. Auto code matching from NVR to camera
    11. Real plug and play without any network setting
    12. Motion detection, email alert
    13. Support CMS, APP, broswer live viewing
    14. Support Iphone/ Android multichannels monitoring
    15. Support HDMI/ VGA video output
    16. 30M signal transmission& reception distance
    17. Support HDD, USB flash driver storage & backup
    18. All in one kit, easy to install, simple to use
    19. Input power: DC12V
  •  Specification for Wireless NVR
     Model No.  ES-WK9304HF
     Product Name  2.4GHz Wireless NVR
     APP   Eseenet/ IP Pro
     Color  White
     Material  Metal
     Operation System  Embedded Linux
     Video Format  H.264
     Channels  4CH
     Main Processor  Hi3520D
     Resolution  1920*1080P
     Video Input  4CH*1080P, 25fps@PAL, 30fps@NTSC
     Video Output  1*HDMI / 1*VGA
     Recording Mode  Manual, alarm, motion detection, timing
     Playback  1CH / 4CH, time, date, event, channel, exact search
     Mobile Surveillance  Support Iphone/ Android mobile phone live viewing
     Alarm  Motion detection, APP push notifications and email alert
     LAN Connection  Automatically, built-in wireless route module to match code of camera
     LAN Port  Reserved 3 RJ45 port,  for camera wiring connection
     Network Connection  1*WAN, 10M/100M adaptable Ethernet RJ45 port
     Storage Capacity  1*SATA port, internal hard drive, up to 4TB
     Operation  Compatible with Mobile App, CMS, browser
     Power Supply  DC 12V, 2A
     Power Consumption  ≤15W (Without HDD)
     OSD Language  Multilingual versions optional
     Installation  Desktop
     Specification for Wireless NVR
     Model No.  ES-W5082FW
     Product Name  2.4GHz Wireless IP Camera
     Color  White
     Material  Metal
     Operation System  Embedded Linux
     Video Format  H.264
     Sensor  1/3‘‘ image CMOS
     Video Quality  1080P, 2.0MP
     Effective Pixels  1920*1080P
     Video Output Impedance  1.0Vp-p composite 75ohm
     Camera Lens  3.6mm fixed lens,  Approx. 75 degree view angle
     LEDs  High performance 36pcs IR Led/ 3pcs Array Leds
     IR Distance  Up to 20m (65ft)
     Night Vision  Auto, color in daytime, auto switch to B&W at nighttime
     Minimum Illumination  0.01Lux/F1.5(Color), ,0.01lux/F1.5(B/W)
     AGC  Auto, low/ middle/ high/ off
     Gain Control  Auto, built-in
     White Balance  Auto(2500°K~9500°K)
     Back Light ompensation  Auto, BLC / DWDR
     LAN Connection  Automatically, built-in wireless route module to match code of NVR
     Network Connection   1*WAN, 10M/100M adaptable Ethernet RJ45 port
     Waterproof  IP66 level
     Power  Supply  DC 12V, 1AP
     Power Consumption  ≤1W
     Use Range  Indoor/ outdoor
  • Name:Type:Size:

  • *

    *

    *

    *
