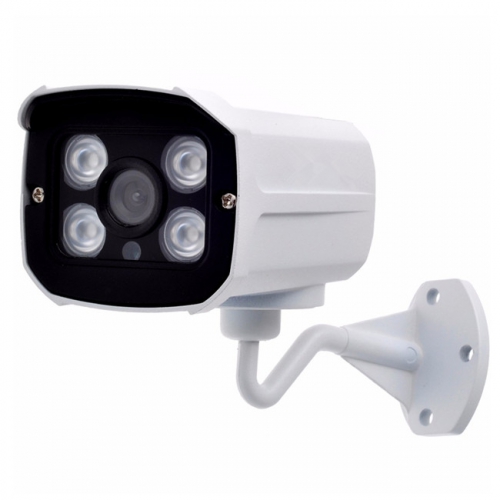

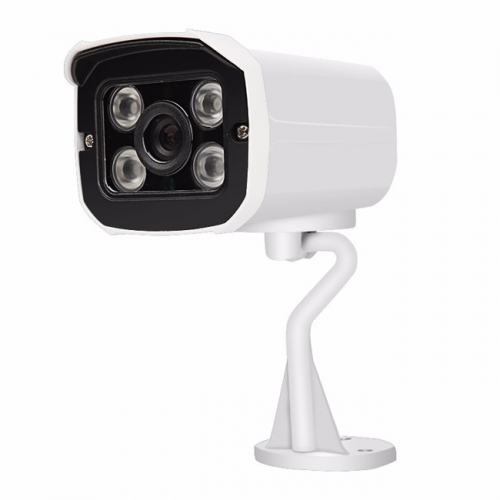

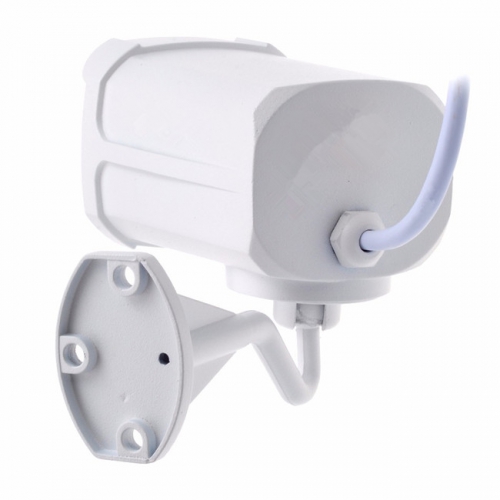

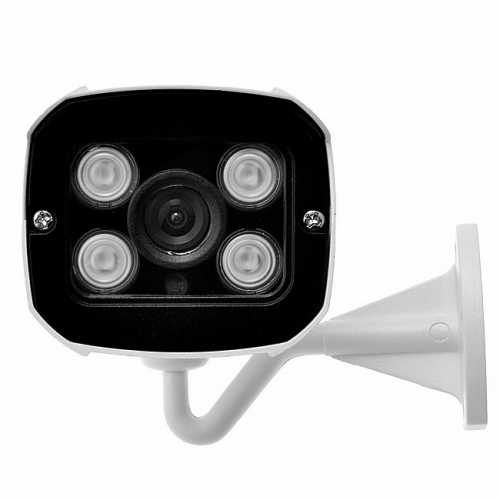

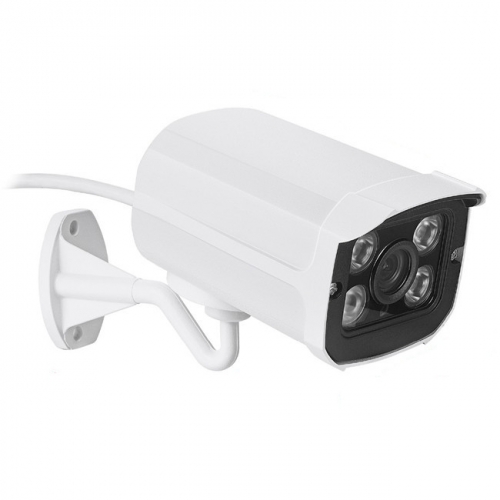

CCTV 3.0MP AHD Camera

Model:ES-AB3052S
* H.264 video compression AHD camera
* Metal housing, white color
* 3.6mm fixed lens (6mm/8mm optional)
* Smart IR-cut filter, day/ night auto switch
* 4pcs array LED, night vision up to 25M
* Min. illumination 0.1Lux(0.01Lux IR Led on)
* OSD menu cable optional
* Max. 500M transmission distance by coax cable
* DC12V voltage output
* Waterproof, outodoor/ indoor use
  • 1. High definition 1536P/ 3.0MP AHD camera
    2. Material: Metal
    3. Color: white
    4. Video compression: H.264 standard
    5. 1/3‘‘CMOS, 2048*1536P
    6. Lens: 3.6mm/ 6mm/ 8mm fixed lens available (default 3.6mm)
    7. 4pcs high performance array leds
    8. Smart IR filter, day & night auto switch
    9. Night vision up to 25 meters (82ft)
    10. Low illumination, Min. 0.1Lux(0.01Lux IR led on)
    11. True WDR,2D&3D noise reduce
    12. OSD menu cable optional
    13. Dual voltage input(DC 12v±25%/AC 24V±25%)
    14. Voltage output: DC12V
    15. Max. 500M transmission distance by coaxial cablbe
    16. Waterproof, IP66 ingress protection
  • Model  Model No.  ES-AB3052S
     Type  3.0MP/ 1536P AHD bullet camera
    Video  Image Sensor  1/3‘‘ color CMOS
     Video Quality  1536P, 3.0MP
     Signal Format  PAL / NTSC optional
     Effective Pixels  2048(H)*1536(V)P
     Frame Rate  PAL@25fps, NTSC@30fps
     Video Output Impedance  1.0Vp-p composite 75ohm
     S/N Ratio  ≥55dB (AGC off)
     Lens  Built-in 3.6mm fixed lens
     View Angle  Approx. 75 degrees
     Leds  High performance 6pcs array Leds
     Min. illumination  0.1Lux/F1.5(Color), ,0.01lux/F1.5(B/W)
     Day/ Night Mode  Auto, Color in daytime, auto switch to B&W at nighttime
     Max. IR Distance  Night vision up to 30 meters (98ft)
    Operation  Electronic Shutter Speed  PAL: 1/50~1/10,000S; NTSC: 1/60~1/10,000S
     White Balance  Automatic (2500°K~9500°K)
     AGC  Auto, low / middle / high / off
     Gain Control  Auto, built-in
     Backlight Compensation  Auto, BLC / DWDR
     HBL  Support
     Noise Reduction  2D/ 3D NR
    General  Body Material  Metal
     Color  White
     Use Range  Outdoor/ indoor
     Power Supply  DC 12V, 500m AP
     Power Consumption  ≤2W
     OSD Menu  Support OSD menu cable
     Transmission Distance  Up to 500M transmission distanceby coaxial cable (by 75-3/ 75-5 cable)
     Working Environment  -10°C~+55°C, 10%~90% RH
     Weatherproof  IP66
     Installed Type  Ceiling / wall mounted
     Dimension  100(L)* 68(W)* 60(H) mm
     Weight  305g
