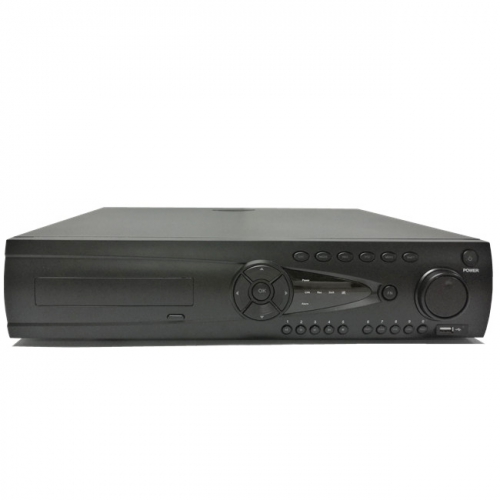

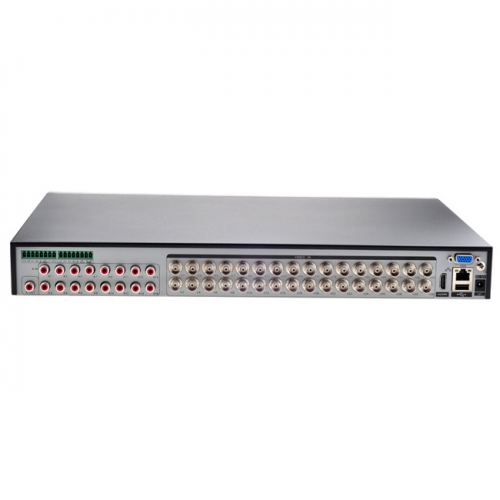

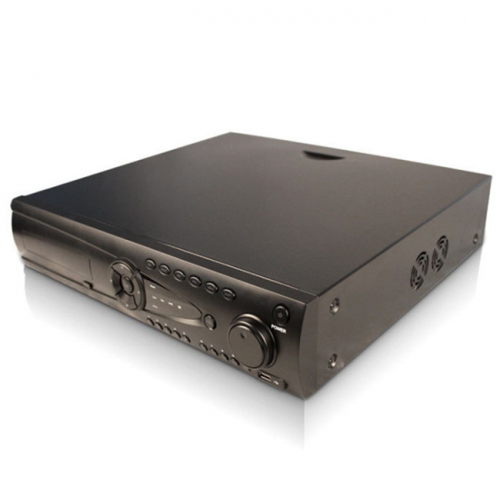

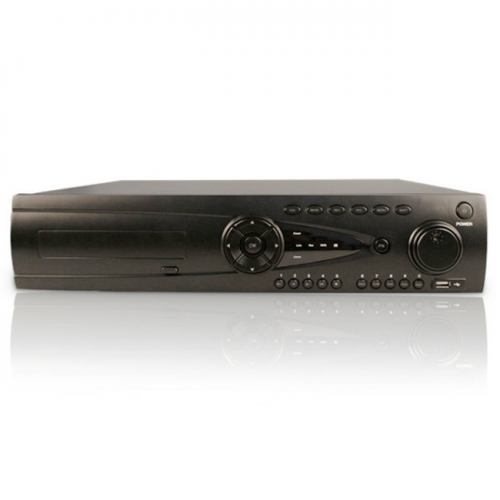

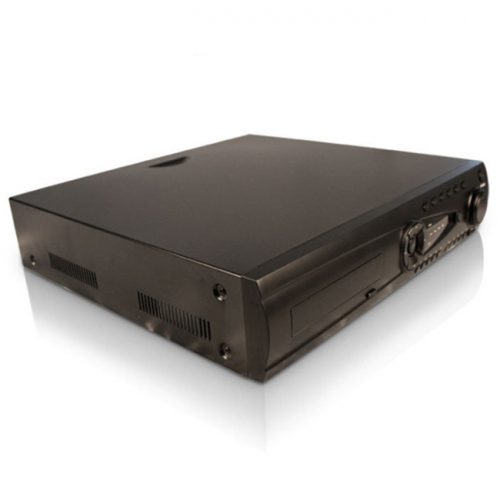

| Product Name | 5 in 1 TVI/ CVI/ AHD/ IP/ CVBS Hybrid 3MP/ 4MP AHD DVR | |
| Model No. | ES-D7816U | ES-D7832U |
| Operation System | Embedded Linux | |
| Video Format | H.264+ (Quasi H.264), H.264 | |
| Mainchip | Hisilicon 3531A | Hisilicon 3531A |
| Channel | 16CH | 32CH |
| Video Encode | 8*4MP@8fps(AHD)/8*3MP@10fps(AHD) 8*1080P@15fps(5 in 1)/8*720P(5 in 1) |
32*4M@8fps(AHD)/32*3M@10fps(AHD) 16*1080P @15fps (5 in 1) / 16*720P(5 in 1) |
| Video Decode | 8*4MP@8fps(AHD)/8*3MP@10fps(AHD) 8*1080P@15fps(5 in 1)/8*720P(5 in 1) |
32*4M@8fps(AHD)/32*3M@10fps(AHD) 16*1080P @15fps (5 in 1) / 16*720P(5 in 1) |
| Video Input | Analog : 16*4MP/ 3MP/ 1080P/ 1080N/ 720P Network: 16*1080P;4*5MP; 8*3MP Hybrid: 8*4MP(analog)+8*4MP(network) |
Analog : 32*4MP/ 3MP/ 1080P/ 1080N/ 720P Network: 32*1080P;8*5MP;16*3MP Hybrid: 16*4MP(analog)+16*3MP(network) |
| Display mode | Full screen/ 4CH/ 8CH/ 9CH | Full screen/ 4CH/8CH/ 9CH/16CH |
| Video Output | 1CH VGA/ HDMI. VGA: 1280×1024, 1440*900, 1280×720, 1024×768, 800*600 HDMI: 1920×1080, 1280×1024, 1440*900, 1280×720, 1024×768, 800*600 |
|
| Motion detection | 192 (16*12) area detection per channel, multiplex sensitivity setting | |
| Audio Input | 16CH RCA | |
| Audio Compression | G.711A | |
| Audio Output | 4CH RCA output | |
| Talkback | 2 way audio talk back | |
| Alarm | 16CH input, 4CH output | |
| Stream type | Video / audio hybrid stream | |
| Playback Function | Play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection, digital zoom |
|
| Record Mode | Manual/ Schedule/ Motion Detection/ Sensor | |
| Search Mode | Date/ time event/ schedule | |
| Mobile Monitoring | iPhone/ Android smart phone | |
| Local Surveillance | CMS (Windows & Apple iOS) | |
| System Recourse | Multiplex recording /playback, multi-users operation | |
| Video Storage | Hard drive(HDD), network | |
| HDD Interface | 8* SATA port, up to 8TB per HDD | |
| Backup Mode | Network back, USB portable HDD, USB recording, SATA burner | |
| Network Connection | 1*WAN, 10M/100M adaptable Ethernet RJ45 port | |
| Network Protocol | TCP/IP, DHCP, DDNS, DNS, PPPoE, UPnP, NTP, SMTP, etc. | |
| PTZ Function | RS485 port, support multiple PTZ protocol | |
| Menu Control | USB mouse, button, remote controller | |
| OSD Menu | Support multiple languages | |
| Power Supply | Built-in ATX power supply | |
| Power Consumption | ≤15W (Without HDD) | |
| Color | Black | |
| Material | Metal | |
| Accessories | Adapter, mouse, manual, CD-disk, installation package | |
| Work Environment | Temperature: -10--+55°, Humidity: 10%--90% | |
| Products Dimensions | 443mm(L)*427mm(W)*92mm(H) | 443mm(L)*427mm(W)*92mm(H) |
